Introduction to Trajectories

Introduction

In the previous vignette (vignette("articles/data-workflow-la")), we saw how we can use transittraj to clean our AVL data. We took care of outliers, deadheading trips, noise, and non-monotonic observations. In this vignette, we’ll apply the cleaned data (lineE_mono) to fit a trajectory function.

Let’s begin by loading the libraries we’ll be using:

library(transittraj)
library(tidytransit)
library(dplyr)
library(tidyr)
library(sf)
library(ggplot2)

Fitting a Trajectory Curve

Our ultimate goal is to fit an interpolating curve describing the position of a transit vehicle at any point in time. Ideally, we could fit an inverse curve, giving us the time the transit vehicle passes any point in space. We can do both using get_trajectory_fun().

transittraj supports a handful of methods for fitting these functions. The simplest is linear interpolation without an inverse. For more fine-grained analyses, though, we recommend fitting a velocity-informed piecewise cubic interpolating polynomial. This uses the speeds and distances, corrected for monotonicity, to fit a cubic spline between each observation. This is the type of curve that get_trajectory_fun() will fit by default (interp_method = "monoH.FC" and use_speeds = TRUE).

Using the data we cleaned in the previous vignette, let’s fit our trajectory functions:

# Run function
lineE_traj <- get_trajectory_fun(distance_df = lineE_mono,
                                interp_method = "monoH.FC",
                                use_speeds = TRUE,
                                find_inverse_fun = TRUE)

transittraj stores the fit curves in a special object class. This object stores a list of fit trajectories, one for each trip, as well as the time and distances ranges for each trip. We can use summary() to take a look inside the object:

summary(lineE_traj)
#> ------
#> AVL Group Trajectory Object
#> ------
#> Number of trips: 11
#> Total distance range: 0.6366599 to 35292.87
#> Total time range: 1779886240 to 1779898116
#> ------
#> Trajectory function present: TRUE
#>    --> Trajectory interpolation method: monoH.FC
#>    --> Maximum derivative: 3
#>    --> Fit with speeds: TRUE
#> Inverse function present: TRUE
#>    --> Inverse function tolerance: 0.01
#> ------

Interpolating

How do you use the fit curve to actually interpolate at new points? We recommend using predict(), as this will ensure that the curves aren’t used to extrapolate beyond the range of each trip. Using predict(), there are three main ways we can interpolate: retrieve distance values from times, retrieve time values from distances, or retrieve time & distance pairs over a spatial range.

Interpolating for Distance from Time

Let’s say you want to know where every vehicle is at a certain point in time. We can do that by providing new_times to predict(). Let’s see below:

# Run interpolating function
lineE_time_interp <- predict(
  object = lineE_traj,
  new_times = c(1779887000, 1779887500)
)

# Print full results
print(lineE_time_interp)
#>   event_timestamp trip_id_performed deriv       interp
#> 1      1779887000          63383915     0    83.127539
#> 2      1779887000          63384093     0 28716.983901
#> 3      1779887500          63383915     0  3183.861194
#> 4      1779887500          63383917     0     7.874249
#> 5      1779887500          63383991     0    79.708636
#> 6      1779887500          63384093     0 34439.361240

Here, interp will be the distance in meters from the route’s beginning, as indicated by the deriv column, which tells us the derivative degree each row corresponds to. You’ll notice that, even though we have 11 trips, there were only two to four distances for each timepoint. This is because predict() will only interpolate a distance value for trips that were actually running at that point in time.

Using a similar function call, we can also find the speed of the vehicle at any point in time by setting the deriv parameter in predict():

# Run interpolating function
lineE_speed_interp <- predict(
  object = lineE_traj,
  new_times = c(1779887000, 1779887500),
  deriv = 1
)

# Print results
print(lineE_speed_interp)
#> # A tibble: 6 × 4
#>   event_timestamp trip_id_performed deriv      interp
#>             <dbl> <chr>             <dbl>       <dbl>
#> 1      1779887000 63383915              1  0.00000355
#> 2      1779887000 63384093              1  3.06
#> 3      1779887500 63383915              1 16.4
#> 4      1779887500 63383917              1  0.0000517
#> 5      1779887500 63383991              1  0.00000880
#> 6      1779887500 63384093              1 10.4

Here, interp will be the speed in meters per second. Finding speeds requires starting from time values; we cannot get speeds from distance values. Finally, if so desired, the input to deriv can be vectorized, allowing you to calculate both position and speed (and acceleration, and jerk!) with one function call:

# Run interpolating function
lineE_vec_interp <- predict(
  object = lineE_traj,
  new_times = c(1779887000, 1779887500),
  deriv = c(0, 1)
)

# Print results
print(lineE_vec_interp)
#> # A tibble: 12 × 4
#>    event_timestamp trip_id_performed deriv  interp
#>              <dbl> <chr>             <dbl>   <dbl>
#>  1      1779887000 63383915              0 8.31e+1
#>  2      1779887000 63383915              1 3.55e-6
#>  3      1779887000 63384093              0 2.87e+4
#>  4      1779887000 63384093              1 3.06e+0
#>  5      1779887500 63383915              0 3.18e+3
#>  6      1779887500 63383915              1 1.64e+1
#>  7      1779887500 63383917              0 7.87e+0
#>  8      1779887500 63383917              1 5.17e-5
#>  9      1779887500 63383991              0 7.97e+1
#> 10      1779887500 63383991              1 8.80e-6
#> 11      1779887500 63384093              0 3.44e+4
#> 12      1779887500 63384093              1 1.04e+1

Interpolating for Time from Distance

One of the most common applications of the fit trajectory curve is to find the time at which each vehicle passed a point along its route. To do this, we’ll use predict() with the new_distances parameter. We’ll begin by finding the distance of each stop along the route using get_stop_distances():

# First, find stop IDs served by Line A
lineA_stop_ids <- filter_by_route(gtfs = lacmta_gtfs,
                                  route_ids = "801")$stops %>%
  pull(stop_id)

# Next, find stop distances and join the timepoints column
lineE_stops <- get_stop_distances(gtfs = lineE_gtfs,
                                 shape_geometry = lineE_shape,
                                 project_crs = la_CRS) %>%
  # Find whether they are shared with Line A
  mutate(Shared = (stop_id %in% lineA_stop_ids),
         Shared = if_else(condition = Shared,
                          true = "Yes",
                          false = "No")) %>%
  # Polish up the result
  select(stop_id, stop_name, Shared, distance) %>%
  arrange(distance)

# Print header
head(lineE_stops)
#> # A tibble: 6 × 4
#>   stop_id stop_name                      Shared distance
#>   <chr>   <chr>                          <chr>     <dbl>
#> 1 80139   Downtown Santa Monica Station  No         41.2
#> 2 80138   17th Street / SMC Station      No       1479.
#> 3 80137   26th Street / Bergamot Station No       2656.
#> 4 80136   Expo / Bundy Station           No       4212.
#> 5 80135   Expo / Sepulveda Station       No       5983.
#> 6 80134   Westwood / Rancho Park Station No       6888.

Now that we have some distances, let’s interpolate using predict():

# Run interpolating function
lineE_stop_crossings <- predict(
  object = lineE_traj,
  new_distances = lineE_stops
)

# Print header
head(lineE_stop_crossings)
#> # A tibble: 6 × 6
#>   stop_id stop_name                     Shared distance trip_id_performed interp
#>   <chr>   <chr>                         <chr>     <dbl> <chr>              <dbl>
#> 1 80139   Downtown Santa Monica Station No         41.2 63383915          1.78e9
#> 2 80139   Downtown Santa Monica Station No         41.2 63383917          1.78e9
#> 3 80139   Downtown Santa Monica Station No         41.2 63383949          1.78e9
#> 4 80139   Downtown Santa Monica Station No         41.2 63383991          1.78e9
#> 5 80139   Downtown Santa Monica Station No         41.2 63384002          1.78e9
#> 6 80139   Downtown Santa Monica Station No         41.2 63384022          1.78e9

Now we have the crossing time, labeled interp at each stop for each trip. The interpolated times are in seconds of epoch time. You’ll notice that this preserves all other fields in the input new_distances dataframe (including stop_id, stop_name, and Shared).

Interpolating for Time & Distance Pairs Over a Range

The final interpolation method allows you to specify a range of distances, and a timestep over which to interpolate within this range. Here, transittraj will use your trajectory’s inverse function to find the time each trip enters and exits the distance_lims, then interpolate every timestep seconds that the vehicle stays in that range.

To see what this does, let’s interpolate some timepoints for all trips through downtown LA. We’ll begin by finding distances of the first and last stop Line E shares with Line A:

# Get distance limits of U St between 13th and 14th
downtown_stops <- lineE_stops %>%
  filter(Shared == "Yes") %>%
  pull(distance)
downtown_lims <- c(min(downtown_stops),
                   max(downtown_stops))

print(downtown_lims)
#> [1] 23453.64 26944.68

Next, we can put this into predict() using the distance_lims parameter, alongside a timestep of 1 second. As above, we can vectorize the deriv input to find both position and speed at each timestep:

# Run interpolating function
lineE_downtown_interp <- predict(
  object = lineE_traj,
  distance_lims = downtown_lims,
  timestep = 1,
  deriv = c(0, 1)
)

# Print header
head(lineE_downtown_interp)
#> # A tibble: 6 × 4
#>   trip_id_performed event_timestamp deriv   interp
#>   <chr>                       <dbl> <dbl>    <dbl>
#> 1 63383915              1779889926.     0 23454.
#> 2 63383915              1779889926.     1     2.60
#> 3 63383915              1779889927.     0 23456.
#> 4 63383915              1779889927.     1     2.89
#> 5 63383915              1779889928.     0 23459.
#> 6 63383915              1779889928.     1     3.18

We can see that, for the printed trip, the first timepoint occurs at the beginning of downtown_lims, then event_timestamp increments 1 second per row afterwards. To better understand see what this did, we’ll generate a plot of these generated points. Below, we first “pivot” our interpolated dataframe to make separate columns for distance and speed interpolations (interp_0 and interp_1, respectively):

# Pivot, for seprate columns for dist & speed
lineE_downtown_pivot <- lineE_downtown_interp %>%
  # Order by time, then filter to the first three complete
  arrange(event_timestamp) %>%
  filter(trip_id_performed %in% unique(trip_id_performed)[2:4]) %>%
  # Pivot to make distance & speed separate columns
  pivot_wider(id_cols = c("trip_id_performed", "event_timestamp"),
              names_from = "deriv", names_glue = "interp_{.name}",
              values_from = "interp") %>%
  # Convert to timezone
  mutate(event_timestamp = as.POSIXct(event_timestamp,
                                      tz = "America/Los_Angeles"))

head(lineE_downtown_pivot)
#> # A tibble: 6 × 4
#>   trip_id_performed event_timestamp     interp_0 interp_1
#>   <chr>             <dttm>                 <dbl>    <dbl>
#> 1 63383915          2026-05-27 06:52:06   23454.     2.60
#> 2 63383915          2026-05-27 06:52:07   23456.     2.89
#> 3 63383915          2026-05-27 06:52:08   23459.     3.18
#> 4 63383915          2026-05-27 06:52:09   23463.     3.45
#> 5 63383915          2026-05-27 06:52:10   23466.     3.71
#> 6 63383915          2026-05-27 06:52:11   23470.     3.96

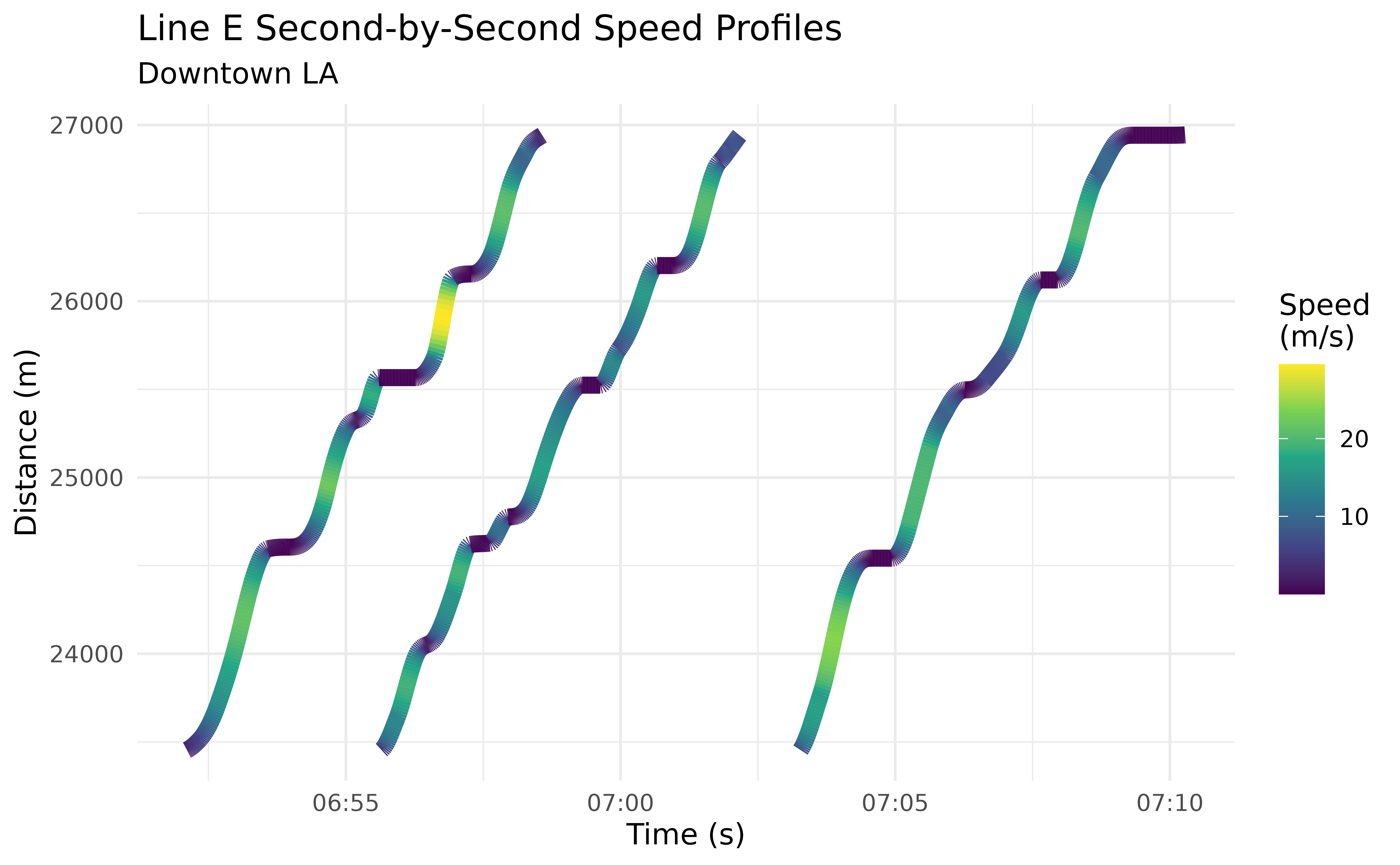

Next, we’ll draw these points as trajectory lines, with the distance column interp_0 used for the y-axis, and the speed column interp_1 used to apply a color gradient:

# Create plot
downtown_plot <- ggplot(data = lineE_downtown_pivot) +
  # Add points
  geom_line(aes(group = trip_id_performed,
                x = event_timestamp,
                y = interp_0, # y from interp at deriv 0, i.e. distnace
                color = interp_1), # color from interp at deriv 1, i.e. speed
             linewidth = 3, alpha = 1) +
  # Color points by trip
  scale_color_viridis_c(name = "Speed\n(m/s)") +
  # Theming
  theme_minimal() +
  labs(x = "Time (s)",
       y = "Distance (m)",
       title = "Line E Second-by-Second Speed Profiles",
       subtitle = "Downtown LA")
downtown_plot

Through this use of predict(), it becomes very easy to identify individual stop-and-go cycles through regions of interest.

You could retrieve identical results by giving predict() a new_times sequence spanning the range of the trajectory’s event_timestamp’s, then filtering to the desired distance range. For large datasets – spanning, for example, months –, however, this would require a massive sequence. If an inverse function is available, using distance_lims and timestep is a much more efficient way to generate high-resolution trajectory profiles for a large number of trips, especially if you are interested in studying a specific region in space.

Visualizing Trajectories

Quick Plots

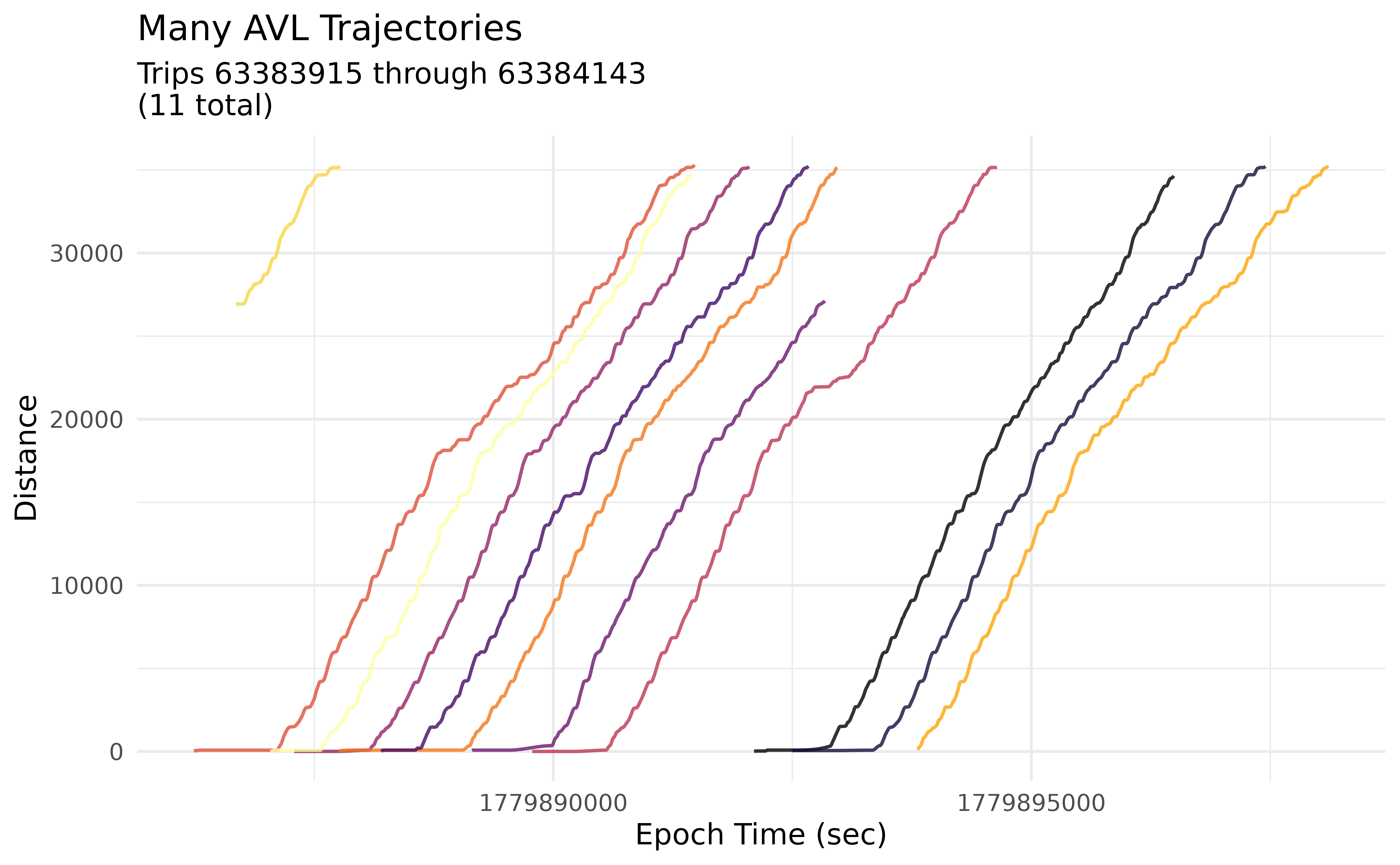

Now its time for the fun part – plotting our trajectory curves. We can use plot() to easily generate a plot of all trajectories:

plot(lineE_traj)

plot() is intended for quick visualizations of trajectories, and as such does not allow for much customization. In the next section, we’ll use plot_trajectory() to create more interesting plots.

Detailed Trajectories

For more customization, we recommend using plot_trajectory(). In addition to a trajectory object, you can add a dataframe of feature distances, such as the lineE_stops dataframe we made earlier. Most layer aesthetics can be controlled using input parameters. For features and trajectories, the linetypes and colors can also be mapped to attributes of that specific layer using a dataframe:

# Set formatting options for Line E stops
stop_formatting <- data.frame(Shared = c("Yes", "No"),
                              color = c("firebrick", "grey50"),
                              linetype = c("longdash", "dashed"))

For mapping dataframes, at least one column must match a column in the layer being mapped to. The other columns must be color and/or linetype, telling transittraj which feature they describe.

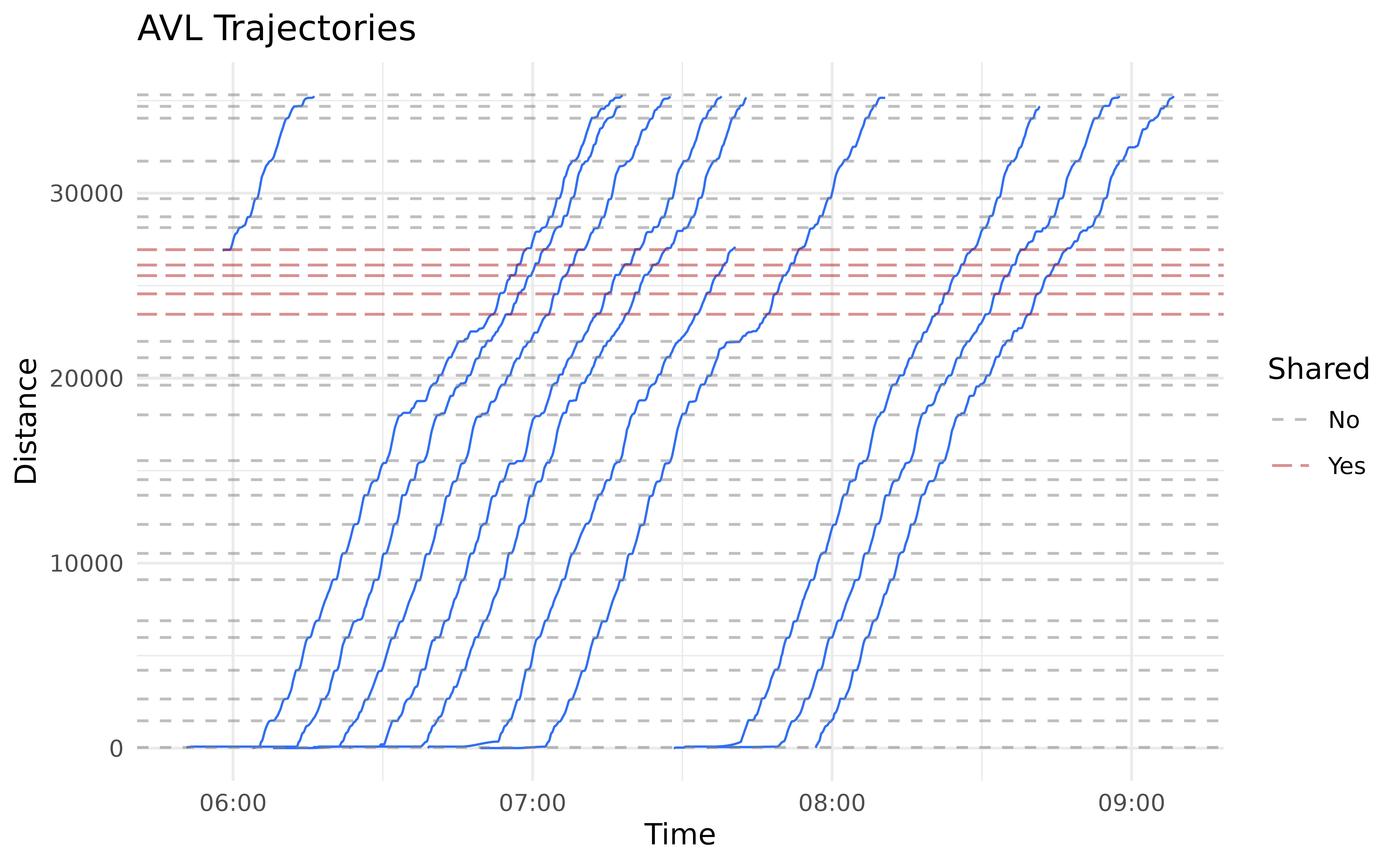

We can plug all that in to plot_trajectory() to generate our formatted plot:

# Run plotting function
traj_plot <- plot_trajectory(
  # Provide input data
  trajectory = lineE_traj,
  feature_distances = lineE_stops,
  # Format features
  feature_color = stop_formatting,
  feature_type = stop_formatting,
  feature_width = 0.5, feature_alpha = 0.5,
  # Format trajectories
  traj_color = "#2f6ff8",
  traj_width = 0.4, traj_alpha = 1
)
traj_plot

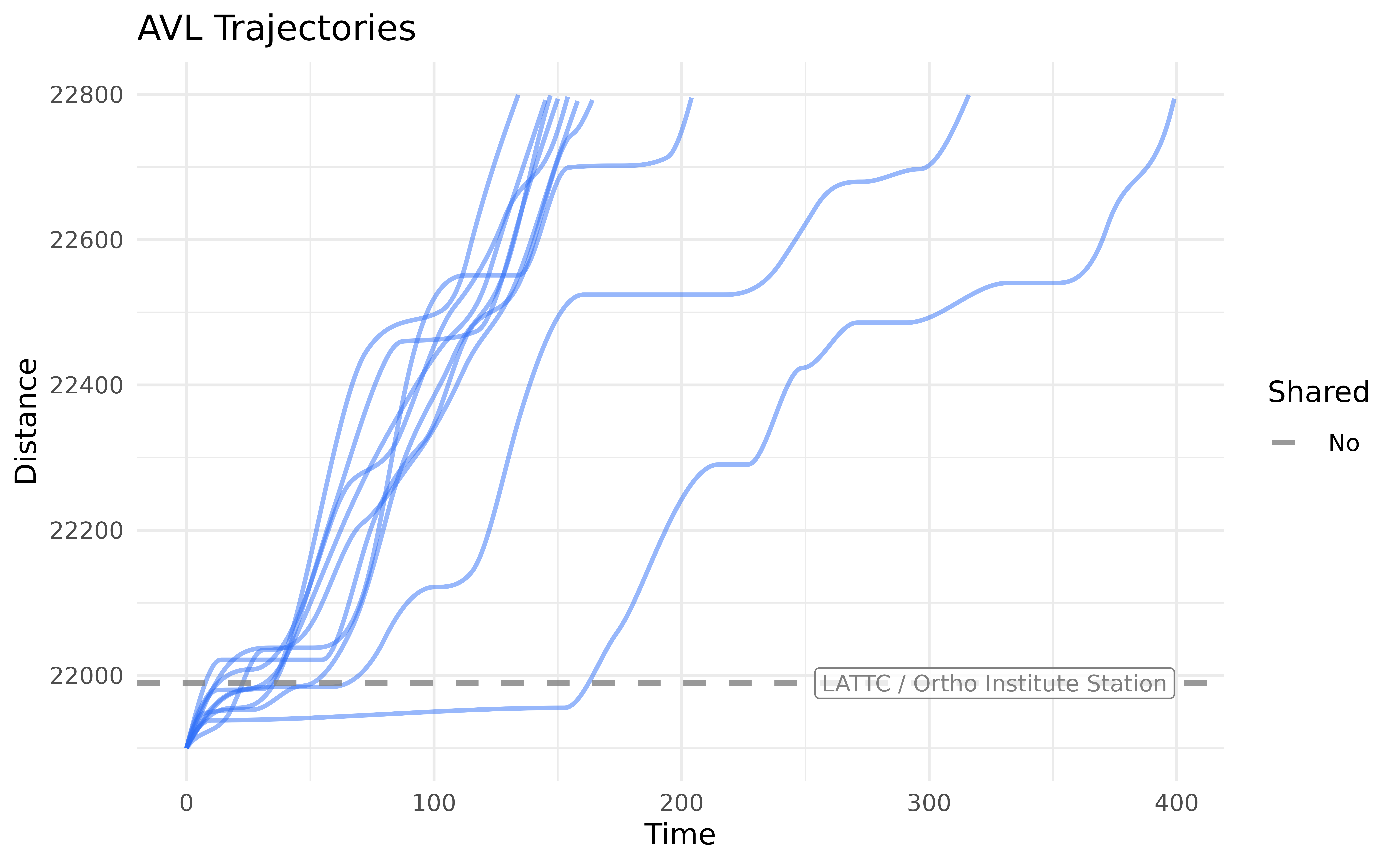

It’s hard to see what’s actually going on here. The benefits of the cleaning we did, and of fitting a spline trajectory, become much more apparent when we zoom in. Below we use the distance_lim parameter to zoom into a stretch of track between LATCC and Pico Station. This section has a handful of tightly-spaced intersections, including Flower St & Washington Blvd, where Line E joins Line A.

We’ll use two additional plotting parameters here. First, center_trajectories will center each trajectory to start at the same point in time. Second, label_field will create a label on our feature lines using the specified field from lineE_stops.

# Set parameters
flower_st_lims <- c(21900, 22800)

# Run function
flower_st_plot <- plot_trajectory(
  # Provide input data
  trajectory = lineE_traj,
  feature_distances = lineE_stops,
  center_trajectories = TRUE,
  distance_lim = flower_st_lims,
  timestep = 1,
  # Format fetures
  feature_color = stop_formatting,
  feature_type = stop_formatting,
  feature_width = 1, feature_alpha = 0.8,
  # Format trajectories
  traj_width = 0.8, traj_alpha = 0.5, traj_color = "#2f6ff8",
  # Add labels
  label_field = "stop_name", label_pos = "right",
  label_alpha = 0.8
)
flower_st_plot

We can glean some insights from this. Every trip stops at LATTC’s station. The Flower & Washington intersection, where Line A joins Line E, is located roughly at 22,550 meters. We can see that most trips come to a stop near this intersection as well. A handful of trips stop or slow down for the other, smaller signals up- or down-stream of Flower & Washington.

Check out help(plot_trajectory) for a full discussion of the formatting features available.

Line Animations

Another fun way to visualize transit vehicle trajectories is to animate them. Use plot_animated_line() to animate vehicles, as points, moving along a straight line.

The formatting process works very similarly with plot_animated_line() as it does with plot_trajectory(). A dataframe can be used to map the outline color and shape attributes of stop and vehicle points to their attributes.

# Set parameters
stop_formatting <- data.frame(Shared = c("Yes", "No"),
                              outline = c("firebrick4", "grey30"),
                              shape = c(22, 21))

For this plot, we’ll zoom in to the Florida Ave-U St corridor of the route. Now we can generate our line animation:

# Set distance limits
downtown_lims <- c(20500, 29000)

# Run function
line_anim <- plot_animated_line(
  # Add input data
  trajectory = lineE_traj,
  feature_distances = lineE_stops,
  distance_lim = downtown_lims,
  timestep = 1,
  # Format vehicles
  veh_outline = "#2f6ff8", veh_stroke = 2,
  # Format features
  feature_outline = stop_formatting,
  feature_shape = stop_formatting,
  feature_size = 4, feature_stroke = 1.5,
  # Add labels
  label_field = "stop_name",
  label_pos = "right", label_size = 3,
  # Format route & vehicles
  route_color = "#f43155",
  veh_alpha = 0.9, veh_size = 4
)
line_anim

The animation shows us that most trips stop primarily at their stations, usually only briefly. There are, though, occasional slow downs between stations, most commonly between LATTC and Pico (as we saw in the trajectory plot above). Through the rest of downtown, movements seem to be smoother.

You’ll also notice that we’ve uploaded this animation to YouTube and embedded it in the vignette. We did this so we could produce a smooth, high-resolution video that doesn’t need to be re-rendered every time this vignette is built. By default, transittraj’s animation functions will return a gif. Check out gganimate::animate() for options to render videos.

Map Animations

The final visualization we’ll make is an animated map. The concept is similar to the animated line we saw above, but instead of simplifying the route, we’ll draw it spatially and show the vehicles traveling through the city.

The function plot_animated_map() has formatting and feature options very similar to the previous two visualization functions. We can reuse the formatting options from plot_animated_line() here.

# Run function
map_anim <- plot_animated_map(
  # Add trajectory, shape, & feature data
  trajectory = lineE_traj,
  shape_geometry = lineE_shape,
  feature_distances = lineE_stops,
  # Format features
  feature_outline = stop_formatting,
  feature_shape = stop_formatting,
  feature_size = 4, feature_stroke = 3,
  # Format route
  route_color = "#f43155", route_width = 4,
  bbox_expand = 1000,
  # Format vehicles
  veh_size = 6, veh_stroke = 3,
  veh_outline = "#2f6ff8", veh_alpha = 0.9
)
map_anim

These animations help give additional spatial context to some patterns noticed earlier. Many slowdowns between stations that were visible in the trajectories now clearly occur at intersections. For example, a particularly long delay at Flower & Washington – just south of the I-10 freeway – is visible at around 0:34. We can also see some potential bunching: two trains get fairly close on Exposition Blvd, just southwest of downtown, at around 0:14. They stay close through downtown, and finish their trips only a ~3 minutes apart at 0:25. If one wanted to zoom into a specific region, distance_lims can be used just as before.

Conclusion

In this vignette we saw how we can easily fit an interpolating trajectory curve to our cleaned AVL data. We used this to interpolate for new time, distance, and speed points along the route. We also explored some ways we can plot and visualize the trajectories. Future vignettes (vignette("articles/indygo-signals")) explore real-world applications of trajectories.
